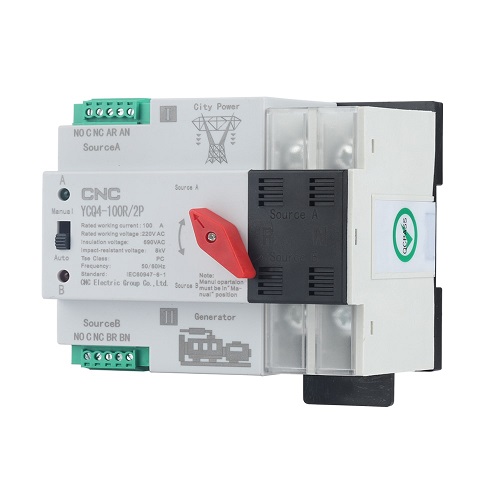

CNC YCQ4-100R Automatic Transfer Switch, 2P, 100 A, 400 V AC, 220 V Control
SKU: 6942034368500
Price
€46.99
- 14 dienų grąžinimas
- Gamintojo garantija
- Saugus atsiskaitymas
- Pickup in store
Delivery
Pick up at our store
October 2
(FREE)
Parcel locker delivery
Parcel locker delivery is unavailable due to size restrictions.
Delivery to home / office
October 5‑7
(from 4.99 €)
Description
The CNC YCQ4-100R is a 2P automatic transfer switch for changing a load between a main and a standby AC power source. It has an integrated controller, supports automatic or manual operation and mounts on a DIN rail.
Electrical data
- Rated current: 100 A; frequency: 50/60 Hz.
- Rated operational voltage: 400 V AC; rated control voltage: 220 V AC.
- Rated insulation voltage: 690 V AC; rated impulse withstand voltage: 8 kV.
- Rated conditional short-circuit current: 50 kA.
- Manufacturer-specified short-circuit protective device: RT16-00-63A fuse.
- Contact, operating, return and power-off transfer times: under 50 ms.
Installation and service life
- Installation: DIN rail; standard: IEC 60947-6-1.
- Mechanical life: 5000 operations; electrical life: 2000 operations.
- Warranty: 24 months.
Technical Specifications
- Weight
- 560 g
- Warranty
- 24 mėn.
